DC01-07-Valve button

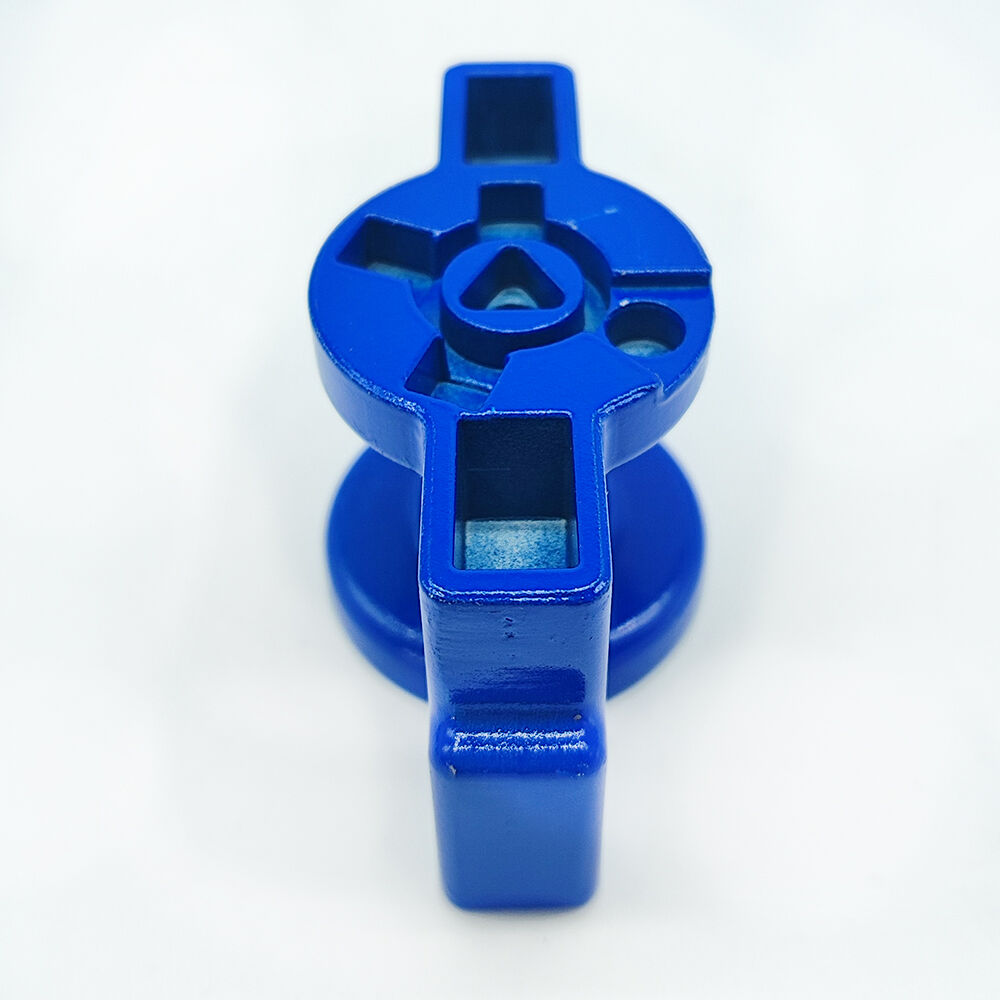

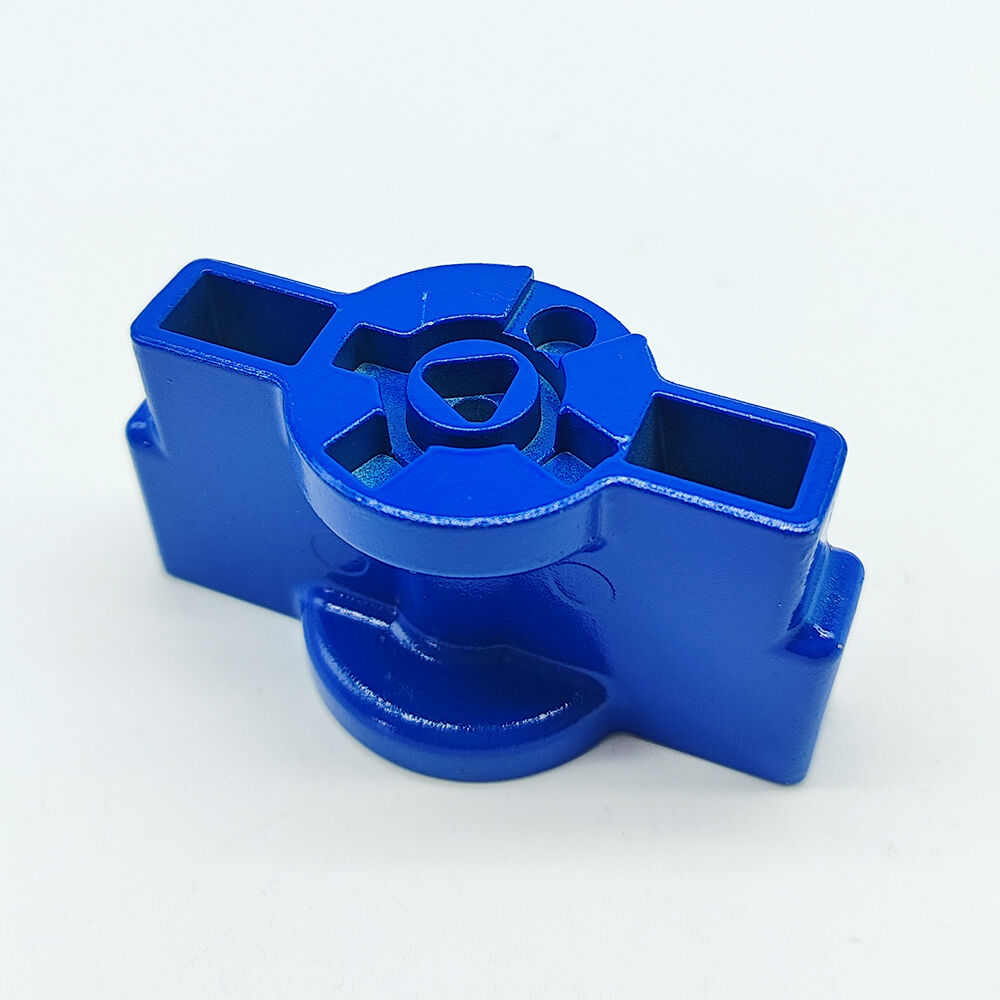

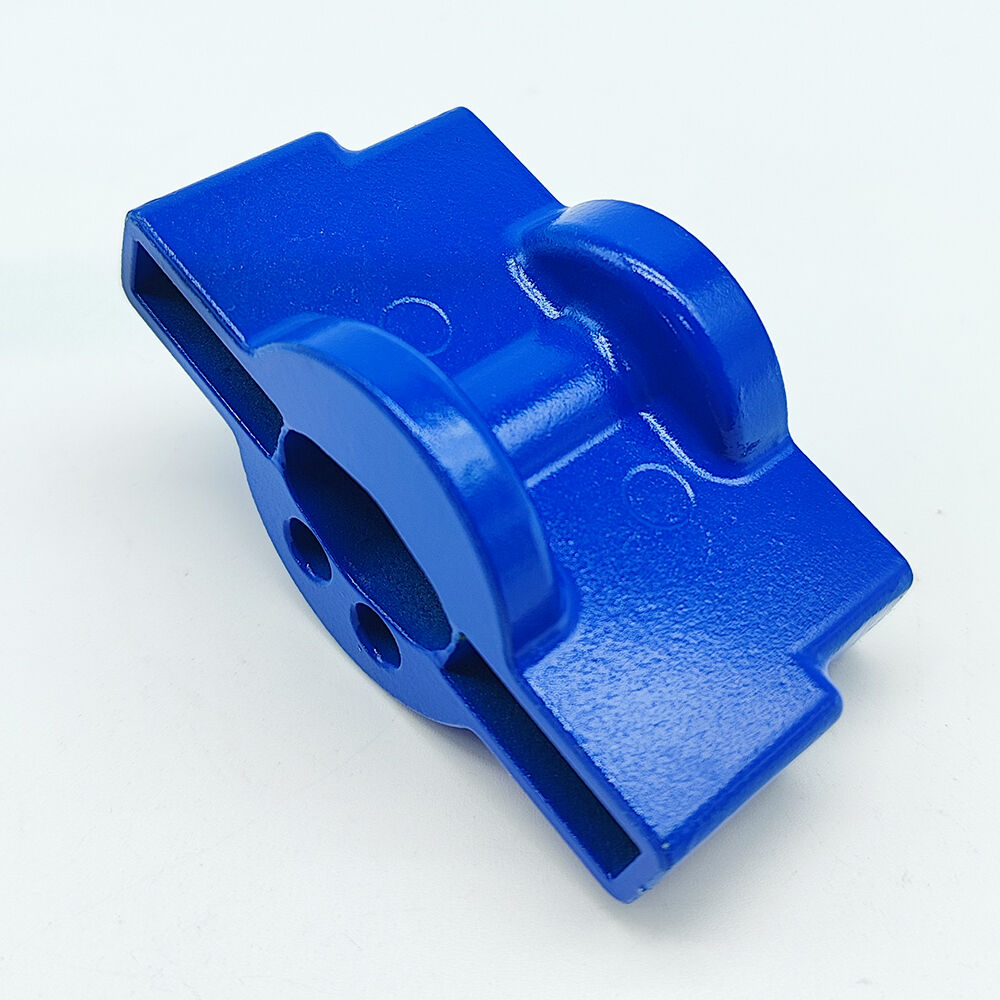

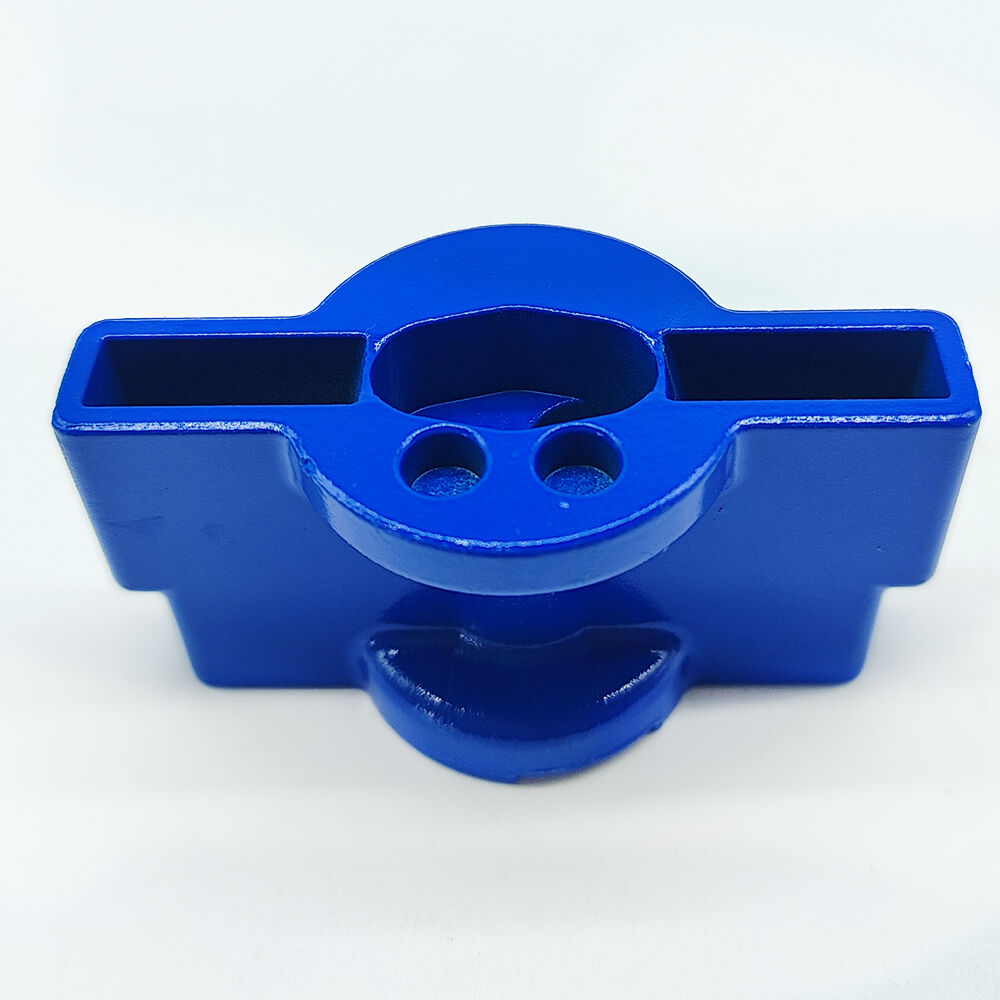

Welcome to our precision die casting and CNC machining solution, Model DC01-07—a specialized component engineered for mechanical actuation and structural integration in industrial automation and fluid control sectors. As illustrated in the accompanying images, this part features a vibrant blue-coated alloy housing with integrated actuation interfaces, precision-machined mounting slots, and wear-resistant surface treatment, making it ideal for applications like industrial valve actuators, automation system linkages, and fluid control mechanism casings. Our engineering team has optimized DC01-07 to meet the stringent demands of industries where actuation precision, dimensional accuracy, and environmental resistance converge: the part’s critical dimensions are controlled within ±0.03mm, and the functional interfaces (visible in the images) are machined with class H7 tolerance—critical for reliable operation in high-cycle mechanical systems. Whether you’re an industrial automation supplier sourcing durable actuation components or a fluid control brand needing precision-machined mechanical parts, DC01-07 delivers a solution that merges complex manufacturing requirements with field-ready reliability.

Model DC01-07 is tailored for mechanical actuation applications, with specifications aligned to its role as a precision-engineered metal component (as seen in the images):

• Materials: Primarily utilizes Aluminum Alloy 6061-T6 for its excellent strength-to-weight ratio, machinability, and corrosion resistance—ideal for the part’s exposure to mechanical loads, cyclic actuation, and industrial environments. Optional materials include Zinc Alloy ZA27 (for cost-sensitive applications), Magnesium Alloy AZ91D (for ultra-lightweight designs), or Brass C36000 (for electrical conductivity). All materials undergo tensile strength testing (≥310 MPa for 6061-T6) and hardness verification (≥95 HB for 6061-T6).



• Production Process: Combines high-pressure die casting (HPDC) to form the part’s complex near-net-shape geometry (including the actuation interfaces and mounting slots visible in the images) with 3-axis CNC machining for precision feature refinement. The die casting process achieves dimensional tolerances of ±0.15mm, while CNC machining controls critical features within ±0.03mm. Fully automated production lines integrate these processes, with in-line actuation cycle testing to verify mechanical reliability.



• Surface Treatment: Supports Powder Coating (for vibrant color identification and corrosion protection), anodizing (for wear resistance), or electroplating (for aesthetic enhancement and conductivity). All surface treatments undergo salt spray testing (≥1,000 hours for powder-coated surfaces) and abrasion resistance testing (≥2,000 cycles for industrial actuation applications).



• Mold Development Cycle: 56weeks for standard DC01-07 dies, with expedited 5.5-week turnaround for modifications to actuation profiles, slot layouts, or material compositions—essential for aligning with rapid product iterations in industrial automation and fluid control sectors.



• Sample Delivery Time: 6 weeks for standard samples (including die development and CNC machining); 5.5 weeks for modified designs using existing tooling. Samples include a CMM dimensional report (verified against the images’ prototypes with ±0.03mm tolerance for critical features) and actuation cycle testing certification.



• Quality System: Compliant with IATF 16949, with specialized checks for DC01-07: each part undergoes 100% CMM inspection for dimensional accuracy, mechanical load testing for actuation reliability, and visual examination for surface quality.



• Production Advantage: Automated die casting cells integrated with robotic part handling and 3-axis CNC machining centers ensure consistent quality and efficiency—achieving a defect rate of <0.04%, far below industry averages for mechanical actuation components.



• Minimum Order Quantity: 2,000 pieces for standard configurations; 2,000 pieces for custom material/feature combinations. Custom orders include a design-for-manufacturability analysis to ensure complex features (like the actuation interfaces in the images) are feasible in high-volume production.

Model DC01-07 leverages its precision-engineered design (visualized in the images) to deliver unique advantages:

• Mechanical Actuation Integration: The combination of HPDC and 3-axis CNC machining (seen in the images) enables precise actuation interfaces and mounting slots, ensuring reliable mechanical linkage and load transfer in industrial valves and automation systems. This reduces system downtime by 30% compared to traditional fabricated or welded assemblies.



• Strength & Cyclic Durability: Aluminum Alloy 6061-T6 construction (as shown in the images) provides excellent tensile strength and fatigue resistance, making DC01-07 ideal for industrial valve actuators and automation linkages. It withstands 50,000+ actuation cycles without performance degradation.



• Corrosion & Environmental Resistance: Powder-coated surfaces (optional) offer excellent corrosion resistance (≥1,000 hours salt spray) and compatibility with industrial fluids, dust, and temperature extremes—critical for long-term reliability in harsh environments.



• Rapid Customization & Design Flexibility: Our team can modify material grades, actuation profiles, slot layouts, or surface treatments in as little as 3.5 weeks—enabling clients to adapt DC01-07 to new product launches, such as next-gen industrial fluid control valves or automation system actuation modules.



• Cost-Effective Scalability: High-pressure die casting (90+ parts per hour) combined with automated CNC machining drives down unit costs for large orders. For volumes of 5,000+ pieces, DC01-07’s cost decreases by 25%, making it a competitive choice for both industrial OEMs and fluid control equipment manufacturers.

Model DC01-07’s precision design (as depicted in the images) makes it a versatile solution across sectors:

• Industrial Automation: Deployed as valve actuator components (where actuation precision and dimensional accuracy ensure fluid flow control) and automation linkage casings (the multi-slot design integrates sensors and mechanical arms for robotic systems). It meets industrial durability standards (10,000+ hours of continuous operation testing).



• Fluid Control Systems: Used as fluid valve mechanism casings (for on-off or proportional control in pipelines, where leak-free actuation is critical) and hydraulic actuation parts (the precision machining ensures piston alignment and force transmission accuracy).



• White Goods & HVAC: Ideal for commercial oven control system components (the corrosion protection and actuation precision meet temperature cycling requirements) and industrial chiller valve actuators (aluminum’s thermal conductivity aids heat management during actuation).



• Other Industries: Utilized in marine actuation system parts (custom-coated variants for saltwater resistance) and agricultural machinery control components (where material strength and actuation precision support heavy-duty equipment operation). Its flexibility in customization, from material to feature complexity, makes it suitable for niche mechanical actuation applications.



In every application, DC01-07’s precision-engineered design—exemplified by the images’ blue-coated alloy housing, CNC-machined actuation interfaces, and mechanically robust structural profile—sets a new benchmark for parts that demand both actuation reliability and dimensional accuracy in modern manufacturing.

Q: How long does mold development and sample production take?
A: From order confirmation, mold development takes about 4-6 weeks. Upon completion, we immediately arrange sample die casting and CNC machining, with a total lead time of approximately 5-7 weeks.

Q: What production process do you use?
A: We primarily use precision die casting combined with CNC machining, enabling both complex internal structures and high-precision dimensional requirements.

Q: Do you meet automotive industry quality standards?
A: Yes, we are certified under the IATF 16949 Quality Management System, fully complying with automotive industry quality requirements.

Q: What industries do your production capabilities cover?
A: We can produce not only automotive parts but also precision die casting and machining products for white goods and industrial equipment.

Q: Do you support multiple surface treatment options?
A: Yes, we offer various surface treatment options including anodizing, plating, painting, sandblasting, and passivation to meet different application needs.

Q: Is the minimum order quantity negotiable?
A: 2,000 pieces is our standard minimum order quantity. For long-term cooperation or special requirements, we can negotiate flexibly.

Ready to enhance your oven door hinge performance? Contact us now for free technical consultation and a quote! Our engineers and sales team are here to provide professional support.

Email: [email protected]
Tel: 86-15663457251

Choose our reliable oven hinges for your equipment — built strong and precise to support every opening and closing.

Note: This product holds an EU design patent, ensuring unique and proprietary design.
