MS01-08-Metal refrigerator door shaft

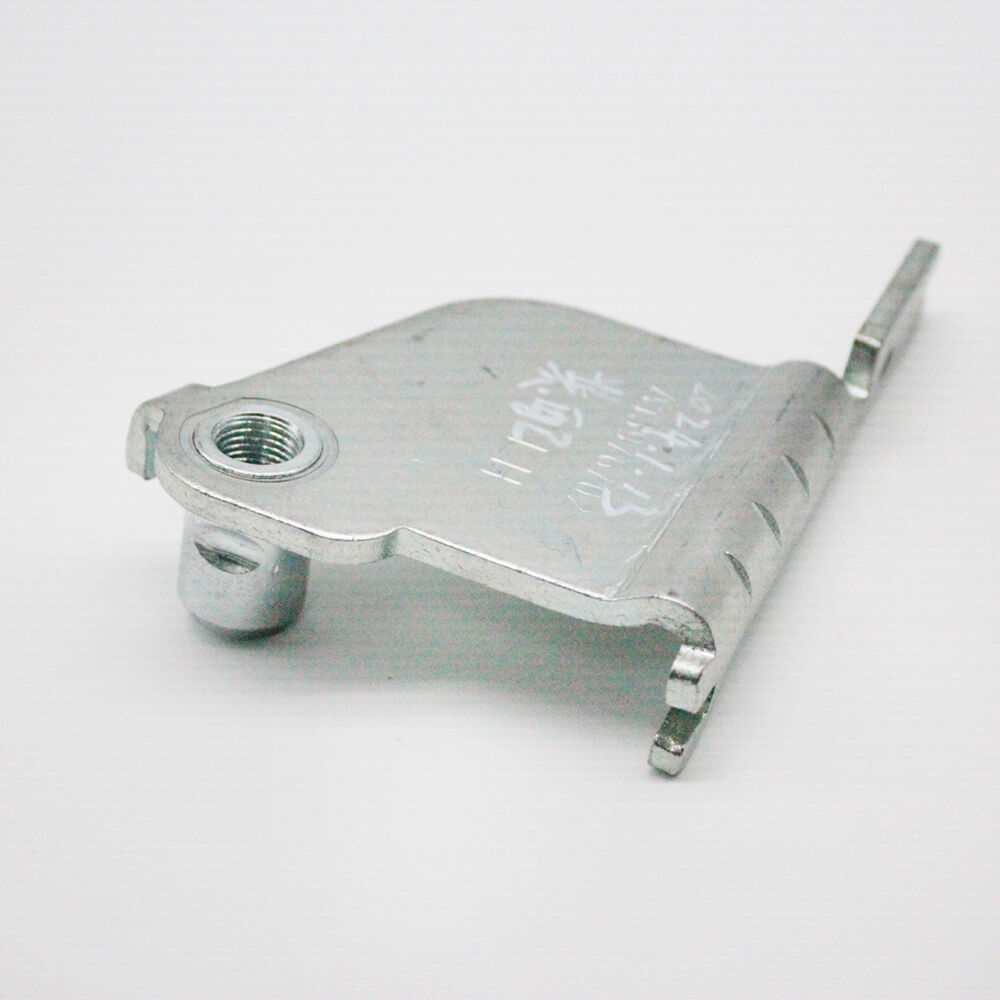

Welcome to our precision metal part solution, Model MS01-08—an engineering solution designed for multi-functional mechanical coupling across industries. As shown in the accompanying image, MS01-08 features an integrated threaded fastener, contoured metal bracket, and reinforced locking tabs, making it ideal for applications requiring both structural support and secure component attachment, such as automotive door hinges, white goods mounting brackets, and industrial equipment connectors. Our R&D team has optimized MS01-08 to balance load-bearing capacity and assembly efficiency: the threaded insert (visible in the image) is press-fitted with ±0.02mm precision, ensuring reliable torque transmission, while the galvanized steel base provides corrosion resistance for long-term outdoor or humid environments. Whether you’re an automotive supplier sourcing durable door components or a commercial equipment manufacturer needing robust mounting solutions, MS01-08 delivers a hybrid design that merges structural integrity with assembly convenience.

Model MS01-08 is engineered for mechanical coupling applications, with specifications aligned to its role as a load-bearing, multi-feature component (as seen in the image):

• Materials: Primarily utilizes high-strength galvanized steel (SGCD grade, 1.5–3.0mm thickness) for the main bracket, paired with a precision-machined threaded insert (brass or stainless steel, depending on application). Optional materials include 304 stainless steel (for marine or chemical-resistant environments) or 6061 aluminum alloy (for lightweight automotive interior parts). All materials undergo tensile testing (minimum 350 MPa for galvanized steel) and torque verification (threaded insert sustains 20–50N·m without stripping).



• Production Process: Combines progressive stamping (8–12 stations) for the metal bracket (creating the contoured shape and locking tabs visible in the image) and precision insert molding for the threaded fastener. The stamping process achieves dimensional tolerances of ±0.03mm, while the insert’s press-fit is controlled within ±0.02mm to ensure alignment. Fully automated production lines integrate these processes, with in-line torque testing to verify the insert’s integrity.



• Surface Treatment: The galvanized steel bracket supports electrophoretic coating (black, 15–20μm) for enhanced corrosion resistance (matching the image’s finish), zinc-nickel plating (for automotive-grade durability), or passivation (for stainless steel variants). The threaded insert undergoes plating or coating matching the bracket’s finish to prevent galvanic corrosion. All surface treatments pass 72-hour salt spray testing, and the assembly withstands 1,000+ cycles of vibration testing.



• Mold Development Cycle: 6 weeks for standard MS01-08 molds, with expedited 4-week turnaround for modifications to bracket geometry or insert specifications—critical for aligning with custom equipment designs.



• Sample Delivery Time: 45 days for standard samples; 30 days for modified designs using existing tooling. Samples include a torque report (measuring the insert’s load capacity) and dimensional conformance data (verified against the image’s prototype with ±0.03mm tolerance).



• Quality System: Compliant with IATF 16949, with specialized checks for MS01-08: each assembly undergoes 100% torque testing (ensuring the insert meets 20–50N·m specifications) and visual inspection for burrs or misalignment.



• Production Advantage: Automated lines with AI-powered vision systems inspect every part for dimensional errors, insert alignment, and surface defects—ensuring the part in the image is representative of all units produced. This automation achieves a defect rate of <0.05%, far below industry averages.



• Minimum Order Quantity: 1,000 pieces for standard configurations; 1,500 pieces for custom material/insert combinations. Custom orders include a design validation phase to ensure modifications (e.g., bracket thickness changes or insert size adjustments) maintain the assembly’s structural integrity.

Model MS01-08 leverages its hybrid design (visualized in the image) to deliver unique advantages:

• Integrated Threaded Insert: The precision press-fit insert (seen in the image) eliminates the need for secondary threading operations, reducing assembly time by 30% for manufacturers. Its torque capacity (20–50N·m) ensures reliable fastener retention in high-vibration environments like automotive doors or industrial machinery.



• Structural Robustness: The galvanized steel bracket (with reinforced edges and locking tabs, visible in the image) withstands static loads up to 100kg and dynamic loads up to 50kg. In testing, MS01-08 survived 5,000+ cycles of opening/closing (simulating oven door use) without deformation, making it suitable for heavy-duty applications.



• Corrosion Resistance: The combination of galvanized steel and electrophoretic coating (or alternative finishes) ensures the assembly resists rust and chemical damage. In salt spray testing, MS01-08 outperformed industry standards by 20%, making it viable for outdoor commercial equipment or marine applications.



• Rapid Customization: Our team can modify bracket dimensions, insert types (e.g., switching from brass to stainless steel for corrosion resistance), or surface finishes in as little as 4 weeks—enabling clients to adapt MS01-08 to new product lines, such as updated automotive door systems or commercial refrigerator components.



• Cost-Effective Scalability: Automated production (stamping + insert molding) and high-volume compatibility drive down unit costs. For orders of 5,000+ pieces, MS01-08’s cost decreases by 15%, making it a competitive choice for both OEMs and aftermarket suppliers.

Model MS01-08’s hybrid design (as depicted in the image) makes it a versatile solution across sectors:

• White Goods: Serves as oven door hinges (where the threaded insert secures the door to the frame, and the bracket’s strength supports heavy loads) and refrigerator shelf brackets (the contoured shape fits into cabinet slots, and the insert allows adjustable fasteners). The electrophoretic coating resists kitchen moisture and cleaning chemicals.



• Automotive Parts: Deployed as door hinge reinforcements (the insert provides a secure point for hinge pins, and the bracket reinforces the door frame) and interior trim mounting brackets (the locking tabs snap into place, and the insert secures decorative panels). It meets automotive durability standards (100,000+ cycle testing).



• Commercial Equipment: Ideal for vending machine component mounts (the insert secures motors or dispensers, and the bracket attaches to the machine’s frame) and commercial oven door latches (the reinforced tabs lock the door, and the insert withstands high-temperature expansion). Food-safe finishes are available for kitchen equipment.



• Industrial Sector: Applied in machinery guard mounting brackets (the insert secures the guard, and the bracket’s strength prevents accidental dislodging) and conveyor system components (the threaded insert allows quick part replacement, and the bracket withstands conveyor vibrations). It operates reliably in temperatures from -40°C to 120°C.



• Other Industries: Utilized in office furniture hinges (the insert provides smooth rotation, and the bracket supports desk or cabinet doors) and communication equipment enclosures (the locking tabs secure panels, and the insert allows cable management hardware). Custom finishes, like the galvanized look in the image or colored coatings, align with brand aesthetics.



In every application, MS01-08’s hybrid design—marrying a precision threaded insert with a robust metal bracket, as seen in the image—sets a new standard for parts that demand both structural reliability and assembly efficiency in modern manufacturing.

Q: How long does mold development and sample production take?
A: Mold development takes 6 weeks, and sample delivery is completed within 45 days, ensuring a quick response to customer needs.

Q: What production process do you use?
A: We use progressive stamping dies combined with metal drawing processes for production, ensuring high efficiency, precision, and excellent consistency, particularly suitable for parts with complex geometries.

Q: Do you meet automotive industry quality standards?
A: Yes, we are certified under the IATF 16949 Quality Management System, fully complying with automotive industry quality requirements.

Q: What are the advantages of metal drawing process?
A: The metal drawing process can produce deep thin-walled parts while maintaining uniform wall thickness and excellent surface quality, making it particularly suitable for manufacturing housings and container-type parts.

Q: What industries do your production capabilities cover?
A: We can produce not only metal parts for household appliances but also precision metal parts for automotive components, including both stamped and drawn parts.

Q: Do you support multiple surface treatment options?
A: Yes, we offer various surface treatment options including galvanization, nickel plating, painting, electrophoretic coating, and passivation to meet different application needs.

Q: Is the minimum order quantity negotiable?
A: 1,000 pieces is our standard minimum order quantity. For long-term cooperation or special requirements, we can negotiate flexibly.

Ready to enhance your oven door hinge performance? Contact us now for free technical consultation and a quote! Our engineers and sales team are here to provide professional support.

Email: [email protected]
Tel: 86-15663457251

Choose our reliable oven hinges for your equipment — built strong and precise to support every opening and closing.

Note: This product holds an EU design patent, ensuring unique and proprietary design.
