MP01-01-CNC machining machine casing

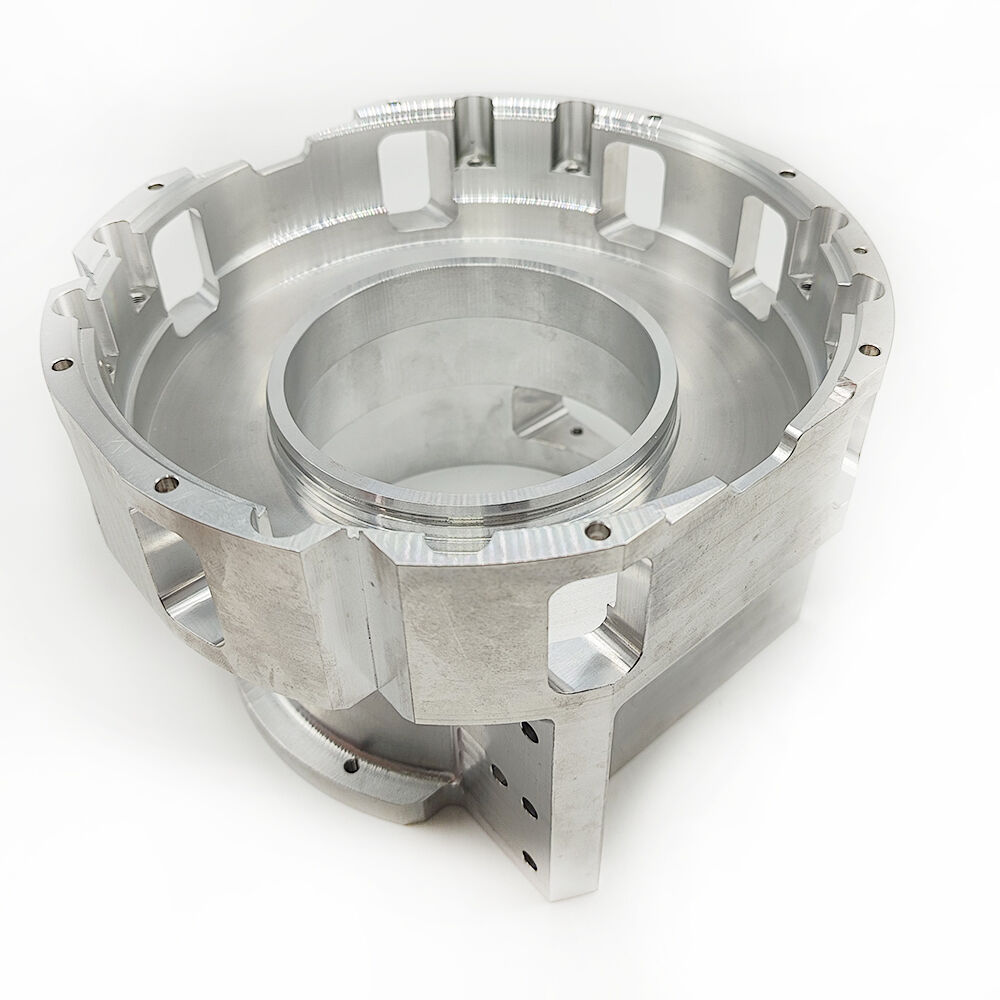

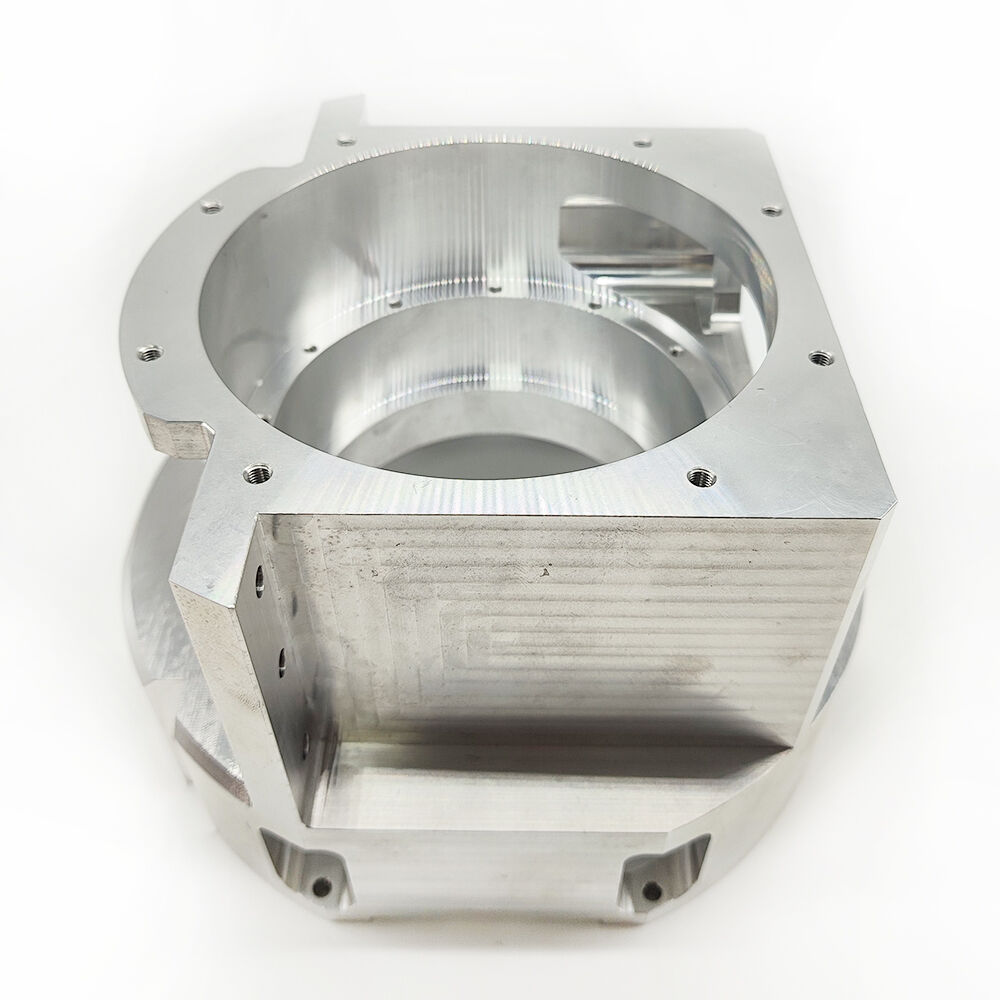

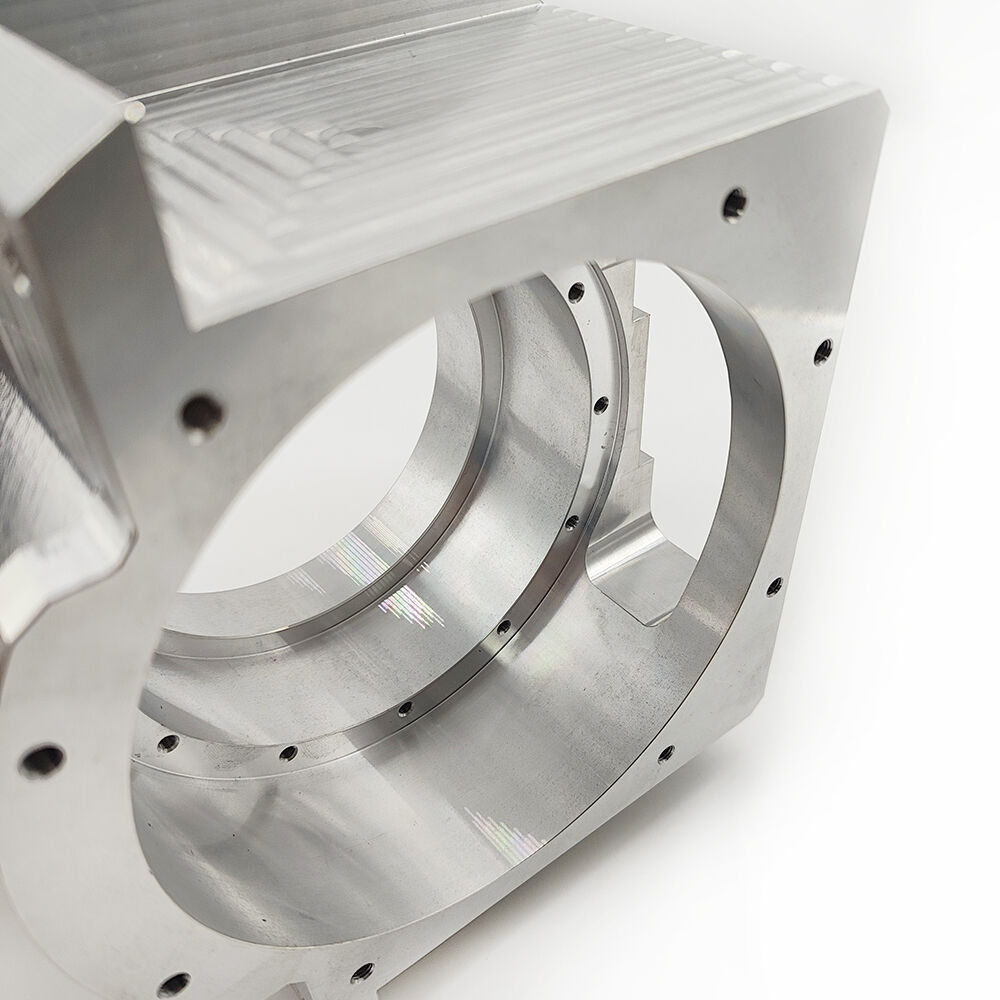

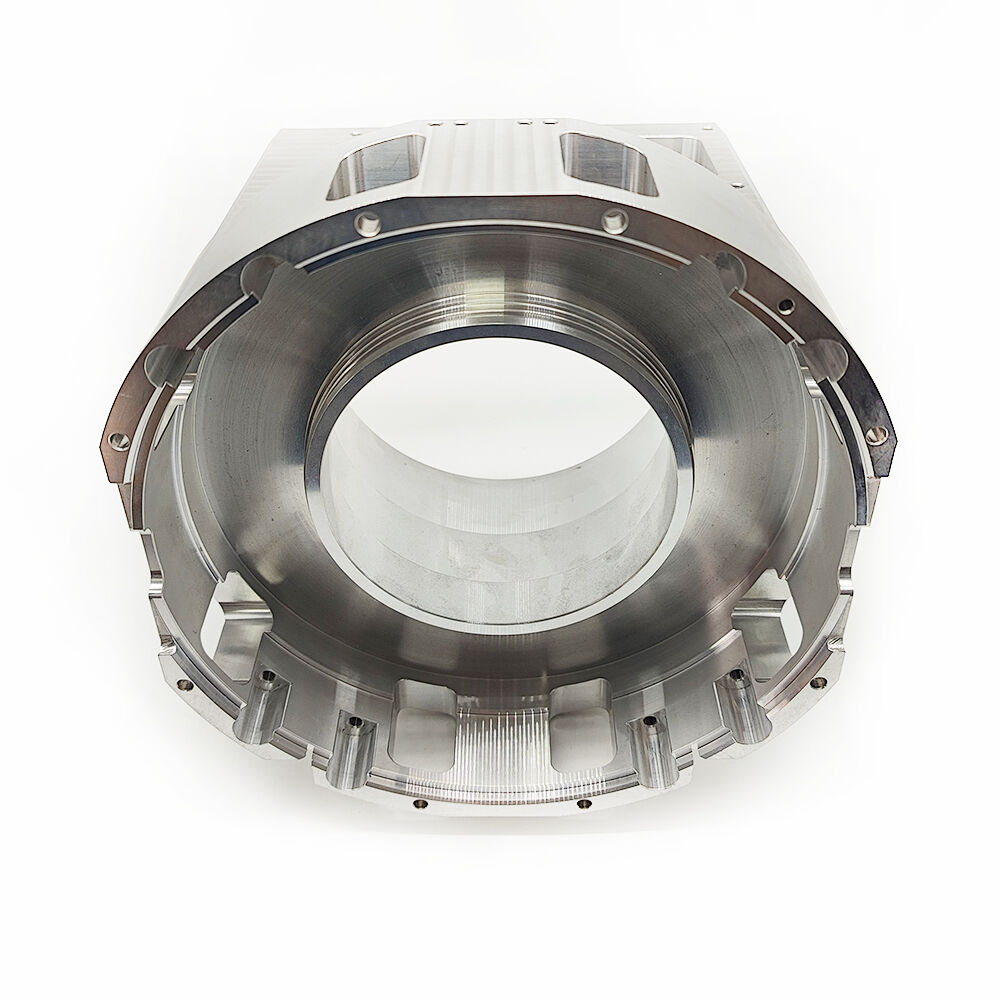

Welcome to our precision die casting and CNC machining solution, Model MP01-01—a specialized component engineered for high-precision structural integration in industrial automation and robotics sectors. As illustrated in the accompanying images, this part features a robust aluminum alloy housing with complex internal cavities, precision-machined mounting flanges, and multi-axis CNC-machined features, making it ideal for applications like robotic arm joints, automation equipment casings, and precision instrumentation housings. Our engineering team has optimized MP01-01 to meet the stringent demands of industries where dimensional accuracy, structural integrity, and weight efficiency converge: the part’s critical dimensions are controlled within ±0.02mm, and the multi-functional features (visible in the images) are machined with micron-level precision—critical for seamless integration of motors, gears, and electronic modules in high-stress environments. Whether you’re an industrial automation supplier sourcing durable robotic components or a precision instrumentation brand needing complex metal housings, MP01-01 delivers a solution that merges complex manufacturing requirements with field-ready performance.

Model MP01-01 is tailored for high-precision structural applications, with specifications aligned to its role as a precision-engineered metal component (as seen in the images):

• Materials: Primarily utilizes Aluminum Alloy 6061-T6 (6.0–15.0mm thickness) for its excellent strength-to-weight ratio, thermal conductivity, and machinability—ideal for the part’s exposure to dynamic loads and thermal cycling. Optional materials include Aluminum Alloy 7075 (for enhanced strength), Zinc Alloy ZA27 (for cost-sensitive applications), or Magnesium Alloy AZ91D (for ultra-lightweight designs). All materials undergo tensile strength testing (≥310 MPa for 6061-T6) and hardness verification (≥95 HB for 6061-T6).



• Production Process: Combines high-pressure die casting (HPDC) to form the part’s complex near-net-shape geometry (including the internal cavities and mounting bosses visible in the images) with 5-axis CNC machining for precision feature refinement. The die casting process achieves dimensional tolerances of ±0.1mm, while CNC machining controls critical features within ±0.02mm. Fully automated production lines integrate these processes, with in-line CMM (Coordinate Measuring Machine) inspection to verify dimensional accuracy.



• Surface Treatment: Supports Type III Hard Anodizing (for wear resistance and corrosion protection), electroplating (for electrical conductivity or aesthetic enhancement), or bead blasting (for a uniform matte finish). All surface treatments undergo salt spray testing (≥1,200 hours for anodized surfaces) and adhesion verification (cross-cut testing for coated surfaces).



• Mold Development Cycle: 6 weeks for standard MP01-01 dies, with expedited 4-week turnaround for modifications to cavity geometry, wall thickness, or material flow channels—essential for aligning with rapid product iterations in industrial and robotics sectors.



• Sample Delivery Time: 6.5 weeks for standard samples (including die development and CNC machining); 5 weeks for modified designs using existing tooling. Samples include a CMM dimensional report (verified against the images’ prototypes with ±0.02mm tolerance for critical features) and material property certification.



• Quality System: Compliant with IATF 16949, with specialized checks for MP01-01: each part undergoes 100% CMM inspection for dimensional accuracy, ultrasonic testing for internal defects, and visual examination for surface quality.



• Production Advantage: Automated die casting cells integrated with robotic part handling and 5-axis CNC machining centers ensure consistent quality and efficiency—achieving a defect rate of <0.03%, far below industry averages for high-precision metal components.



• Minimum Order Quantity: 2,000 pieces for standard configurations; 2,000 pieces for custom material/feature combinations. Custom orders include a design-for-manufacturability analysis to ensure complex features (like the multi-axis machined surfaces in the images) are feasible in high-volume production.

Model MP01-01 leverages its precision-engineered design (visualized in the images) to deliver unique advantages:

• High-Precision Structural Integration: The combination of HPDC and 5-axis CNC machining (seen in the images) enables complex internal cavities and external features with micron-level precision, ensuring seamless integration of sub-components like motors, gears, and sensors. This reduces assembly time by 35% compared to traditional multi-part assemblies.



• Strength-to-Weight Optimization: Aluminum Alloy 6061-T6 construction (as shown in the images) provides a strength-to-weight ratio superior to many steels, making MP01-01 ideal for robotic and automation applications where weight reduction and structural integrity are critical. It withstands static loads up to 600kg without deformation.



• Thermal & Environmental Resistance: Anodized surfaces (optional) offer excellent corrosion resistance (≥1,200 hours salt spray) and thermal stability (up to 220°C), suitable for industrial environments and robotic systems with high thermal demands.



• Rapid Customization & Design Flexibility: Our team can modify material grades, feature geometries, surface treatments, or dimensional tolerances in as little as 4 weeks—enabling clients to adapt MP01-01 to new product launches, such as next-gen collaborative robot joints or industrial automation control modules.



• Cost-Effective Scalability: High-pressure die casting (70+ parts per hour) combined with automated CNC machining drives down unit costs for large orders. For volumes of 6,000+ pieces, MP01-01’s cost decreases by 28%, making it a competitive choice for both industrial OEMs and robotics equipment manufacturers.

Model MP01-01’s precision design (as depicted in the images) makes it a versatile solution across sectors:

• Industrial Robotics & Automation: Deployed as robotic arm joint housings (where high precision and structural integrity ensure smooth motion and load-bearing) and automation equipment casings (for conveyor systems or assembly lines, where dimensional stability and thermal management are critical).



• Precision Instrumentation: Used as scientific equipment housings (for laser or imaging devices, where micron-level machining ensures component alignment) and medical device structural parts (aluminum’s biocompatibility and precision meet regulatory requirements for diagnostic equipment).



• White Goods & HVAC: Ideal for commercial refrigerator compressor housings (the precision machining ensures bearing alignment and reduced vibration) and industrial air conditioner structural components (aluminum’s corrosion resistance withstands harsh environments).



• Other Industries: Utilized in aerospace component prototypes (for lightweight structural testing) and energy equipment parts (where material strength and thermal conductivity support power electronics cooling). Its flexibility in customization, from material to feature complexity, makes it suitable for niche high-precision applications.



In every application, MP01-01’s precision-engineered design—exemplified by the images’ aluminum alloy housing, multi-axis CNC-machined features, and complex internal cavities—sets a new benchmark for parts that demand both structural reliability and dimensional accuracy in modern manufacturing.

Q: How long does mold development and sample production take?
A: From order confirmation, mold development takes about 4-6 weeks. Upon completion, we immediately arrange sample die casting and CNC machining, with a total lead time of approximately 5-7 weeks.

Q: What production process do you use?
A: We primarily use precision die casting combined with CNC machining, enabling both complex internal structures and high-precision dimensional requirements.

Q: Do you meet automotive industry quality standards?
A: Yes, we are certified under the IATF 16949 Quality Management System, fully complying with automotive industry quality requirements.

Q: What industries do your production capabilities cover?
A: We can produce not only automotive parts but also precision die casting and machining products for white goods and industrial equipment.

Q: Do you support multiple surface treatment options?
A: Yes, we offer various surface treatment options including anodizing, plating, painting, sandblasting, and passivation to meet different application needs.

Q: Is the minimum order quantity negotiable?
A: 2,000 pieces is our standard minimum order quantity. For long-term cooperation or special requirements, we can negotiate flexibly.

Ready to enhance your oven door hinge performance? Contact us now for free technical consultation and a quote! Our engineers and sales team are here to provide professional support.

Email: [email protected]
Tel: 86-15663457251

Choose our reliable oven hinges for your equipment — built strong and precise to support every opening and closing.

Note: This product holds an EU design patent, ensuring unique and proprietary design.
