IM01-04-White injection molding rice cooker shell

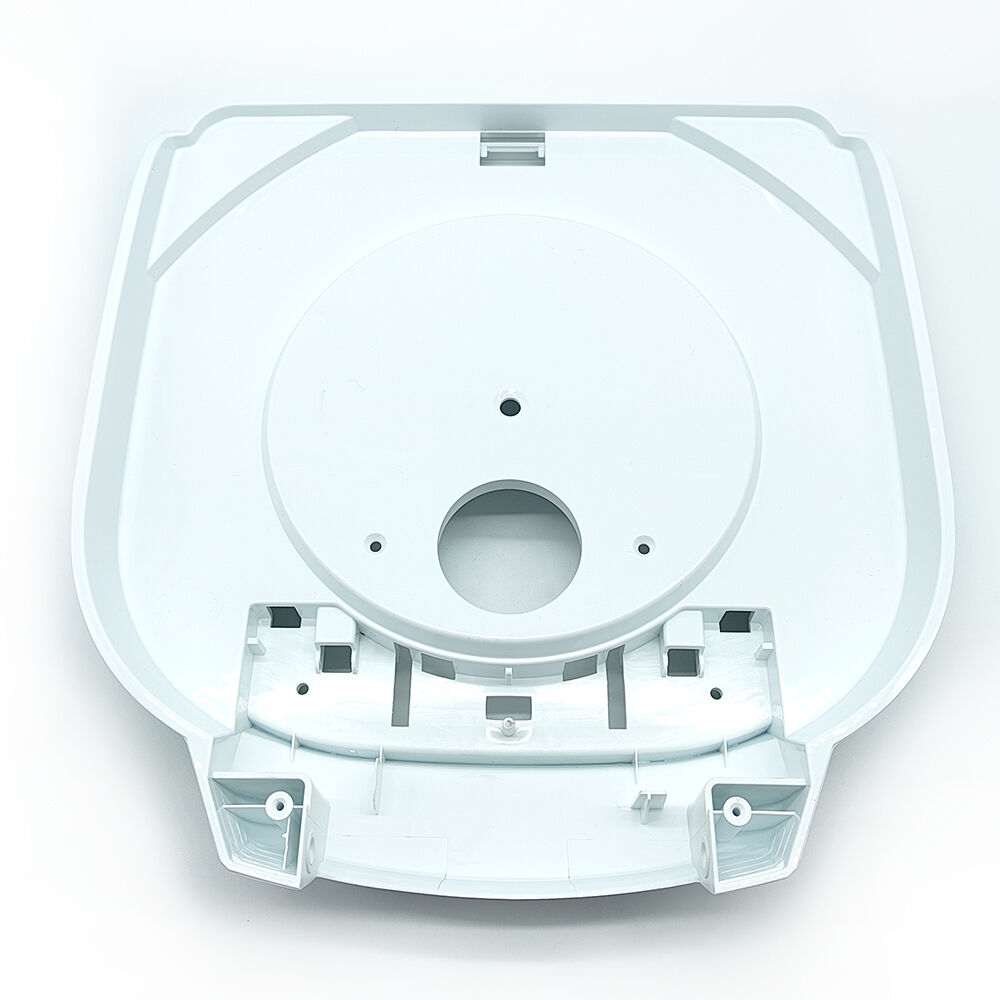

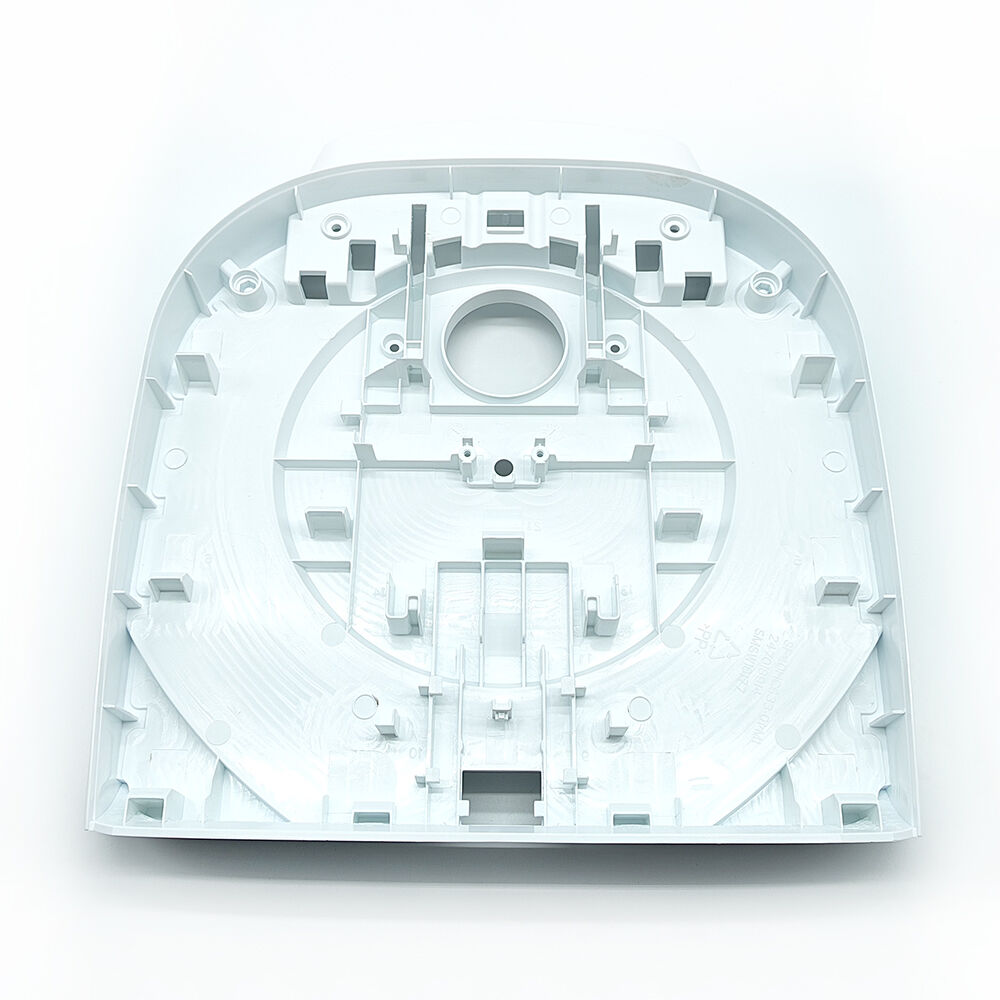

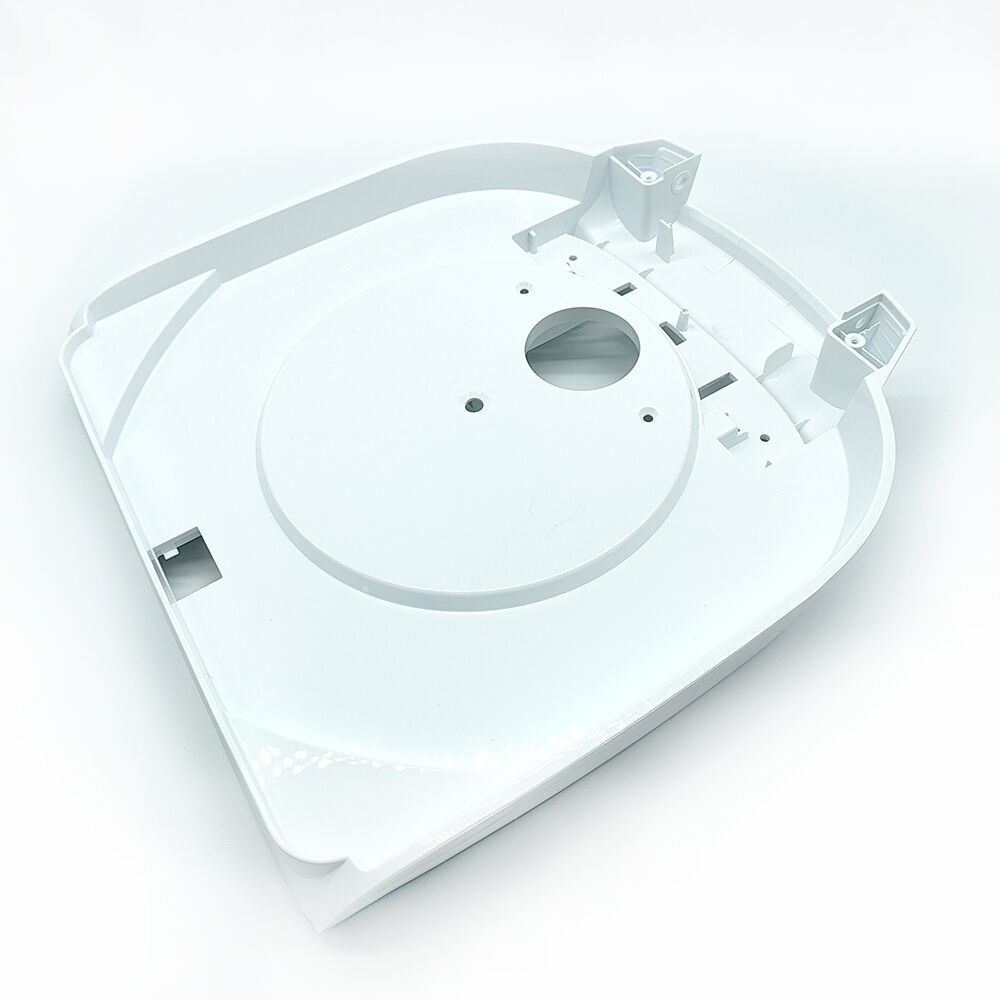

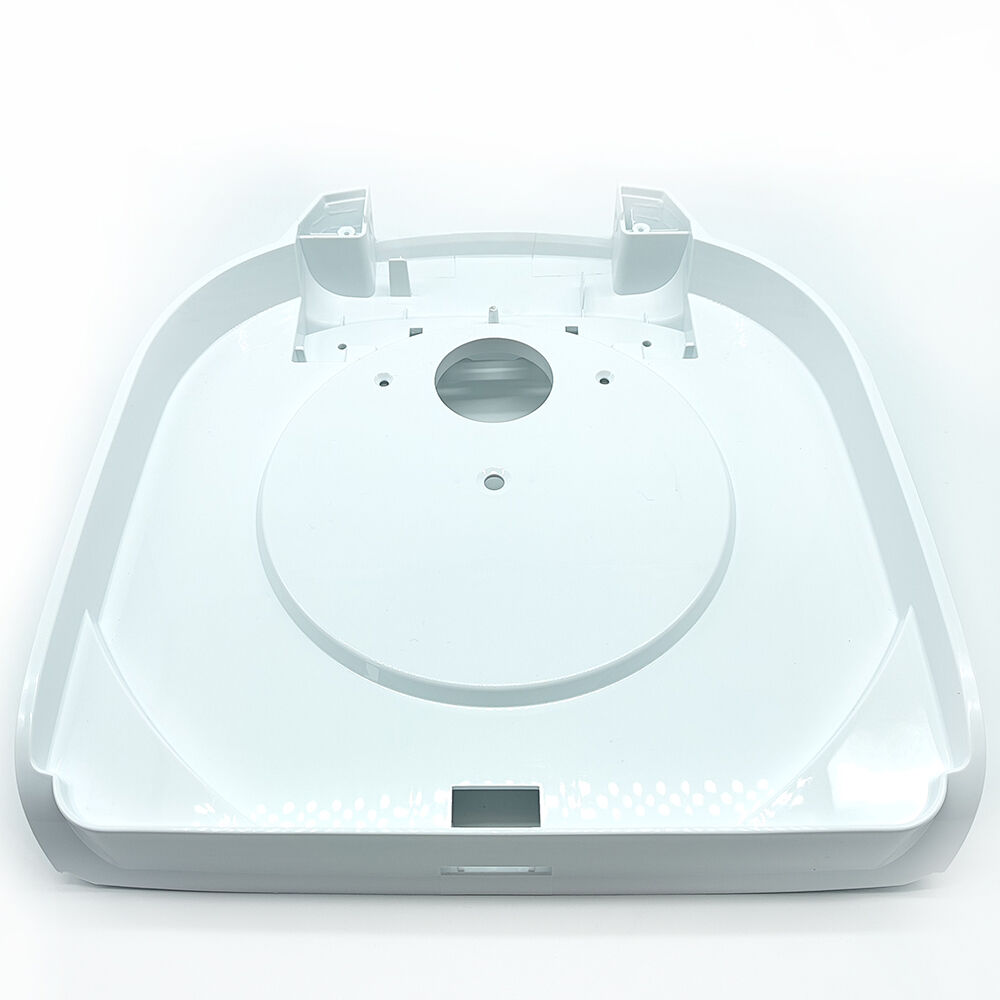

Welcome to our precision plastic injection molded part solution, Model IM01-04—a specialized component engineered for structural-aesthetic integration in smart home and white goods sectors. As illustrated in the accompanying images, this part features a sleek white polymer housing with integrated rib-reinforced structures, precision-molded mounting bosses, and snap-fit assembly interfaces, making it ideal for applications like robotic vacuum cleaner casings, smart appliance structural frames, and home automation device enclosures. Our engineering team has optimized IM01-04 to meet the stringent demands of industries where dimensional accuracy, assembly efficiency, and visual consistency converge: the part’s wall thickness is controlled within ±0.1mm, and the functional features (visible in the images) are positioned with ±0.05mm tolerance—critical for seamless integration of motors, sensors, and electronic modules in vibration-prone environments. Whether you’re a smart home manufacturer sourcing durable yet stylish components or a white goods brand needing precision-molded frames, IM01-04 delivers a solution that merges complex molding requirements with consumer-ready design.

Model IM01-04 is tailored for structural-aesthetic applications, with specifications aligned to its role as a precision-engineered polymer component (as seen in the images):

• Materials: Primarily utilizes ABS+PMMA (2.0–3.5mm thickness) for its excellent impact resistance, dimensional stability, and glossy finish—ideal for the part’s exposure to household environments and aesthetic demands. Optional materials include PP (for cost-sensitive applications), PC (for enhanced heat resistance), or TPE (for soft-touch zones). All materials undergo tensile strength testing (≥40 MPa for ABS+PMMA) and impact resistance verification (≥10 kJ/m² for ABS+PMMA).



• Production Process: Combines 8-cavity hot runner injection molds to produce the part’s complex geometry (including the rib-reinforced structures and mounting bosses visible in the images) with post-molding automated vision inspection for dimensional conformance and surface quality. The injection process achieves dimensional tolerances of ±0.1mm, while the functional features’ positioning is controlled within ±0.05mm. Fully automated production lines integrate these processes, with in-line dimensional scanning to verify structural integrity.



• Surface Treatment: Supports high-gloss painting (custom RAL colors) to match smart home branding, texture molding (for slip resistance in handling zones), or laser marking (for product identification). All surface treatments undergo abrasion resistance testing (≥600 cycles for painted surfaces) and environmental exposure verification (1,000-hour humidity testing for household applications).



• Mold Development Cycle: 6 weeks for standard IM01-04 molds, with expedited 5-week turnaround for modifications to color, rib patterns, or functional feature layouts—essential for aligning with rapid product iterations in smart home and white goods sectors.



• Sample Delivery Time: 7.5 weeks for standard samples (including mold development); 7 weeks for modified designs using existing tooling. Samples include a dimensional conformance report (verified against the images’ prototypes with ±0.1mm tolerance for the polymer body and ±0.05mm for functional features) and surface finish inspection results.



• Quality System: Compliant with IATF 16949, with specialized checks for IM01-04: each part undergoes 100% vision inspection for cosmetic defects, dimensional measurement, and snap-fit integrity testing.



• Production Advantage: Automated injection molding lines with robotic part handling and AI-powered vision systems inspect every part for surface flaws, dimensional errors, and feature alignment—ensuring the parts in the images are representative of all units produced. This automation achieves a defect rate of <0.04%, far below industry averages for aesthetic-critical smart home components.



• Minimum Order Quantity: 5,000 pieces for standard configurations; 7,000 pieces for custom material/finish combinations. Custom orders include a design-for-manufacturability analysis to ensure complex features (like the rib networks and snap-fits in the images) are feasible in high-volume production while maintaining cost efficiency.

Model IM01-04 leverages its precision-engineered design (visualized in the images) to deliver unique advantages:

• Structural-Aesthetic Integration: The high-gloss white finish (seen in the images) meets modern smart home design trends, while the integrated rib-reinforced structure provides 25% weight reduction compared to solid designs without compromising strength (≥25kg static load). Snap-fit interfaces enable tool-free assembly, reducing production costs by 20% compared to screw-based alternatives.



• Durability & Household Compatibility: ABS+PMMA construction (as shown in the images) offers excellent impact resistance and compatibility with common household cleaners—critical for robotic vacuums and smart appliance frames. It also withstands temperature ranges from -10°C to 80°C, suitable for diverse indoor operating environments.



• Precision Dimensional Control: Hot runner injection and AI vision inspection ensure the part’s wall thickness uniformity (±0.1mm) and functional feature accuracy (±0.05mm)—essential for aligning motors, sensors, and control panels in smart home devices.



• Rapid Customization & Design Flexibility: Our team can modify material types, color schemes, rib patterns, or surface finishes in as little as 5 weeks—enabling clients to adapt IM01-04 to new product launches, such as next-gen robotic cleaners or smart home climate control devices.



• Cost-Effective Scalability: 8-cavity mold production (120+ parts per hour) and automated inspection drive down unit costs for large orders. For volumes of 10,000+ pieces, IM01-04’s cost decreases by 22%, making it a competitive choice for both premium smart home devices and mass-market white goods.

Model IM01-04’s precision design (as depicted in the images) makes it a versatile solution across sectors:

• Smart Home & Robotics: Deployed as robotic vacuum cleaner casings (where the rib-reinforced structure supports motor weight and the snap-fits enable modular component assembly) and smart thermostat frames (the high-gloss finish aligns with modern home aesthetics). It meets durability standards (5,000+ hours of continuous operation testing).



• White Goods: Used as air purifier structural components (the precise dimensions fit filters and fans) and humidifier enclosures (for water tank integration, where chemical resistance and assembly efficiency are critical).



• Commercial Equipment: Ideal for office automation device casings (for printers or scanners, where structural integrity ensures long-term reliability) and retail display component frames (the snap-fits allow quick merchandising changes).



• Other Industries: Utilized in medical device accessory housings (custom-colored variants for diagnostic equipment peripherals) and educational robotics parts (where material safety and structural precision are paramount). Its flexibility in customization, from material to finish, makes it suitable for niche structural-aesthetic applications.



In every application, IM01-04’s precision-engineered design—exemplified by the images’ rib-reinforced white polymer housing, precision mounting bosses, and snap-fit interfaces—sets a new benchmark for parts that demand both visual appeal and reliable performance in modern manufacturing.

Q: How long does mold development and sample production take?
A: From order confirmation, the mold development cycle is approximately 6-7 weeks. Upon completion, we immediately arrange sample production and delivery, with a total lead time of about 7-8 weeks.

Q: What production process do you use?
A: We primarily use multi-cavity molds and hot runner systems for production, ensuring high efficiency, precision, and excellent consistency.

Q: Do you meet automotive industry quality standards?
A: Yes, we are certified under the IATF 16949 Quality Management System, fully complying with automotive industry quality requirements.

Q: What industries do your production capabilities cover?
A: We can produce not only injection molded products for home appliances but also precision injection molded products for automotive parts.

Q: Do you support multiple surface treatment options?
A: Yes, we offer various surface treatment options including painting, plating, silk screening, and pad printing to meet different application needs.

Q: Is the minimum order quantity negotiable?
A: 5,000 pieces is our standard minimum order quantity. For long-term cooperation or special requirements, we can negotiate flexibly.
